Adjustable 3D mount for 12mm laser modules
€83.30
Delivery time: In stock
Adjustable 3D mount for 12mm laser modules
Fully adjustable 3D mount with ball head for 12-mm laser modules – 3D-Mount-12: This sturdy mount accommodates all line, crosshair, and dot laser modules with a 12-mm diameter and also serves as a heat sink—sufficiently sized for all 12-mm laser modules we offer.
The base features 2 M4 threads and 1 1/4"-20 thread for mounting in any location or on a tripod with a 1/4-inch connection. The module is clamped into the mounting block; it can be freely adjusted in all directions using the ball head and is secured with a wing screw. The clamping mechanism is very stable—for long-term use, the wing screw can be replaced with a set screw.

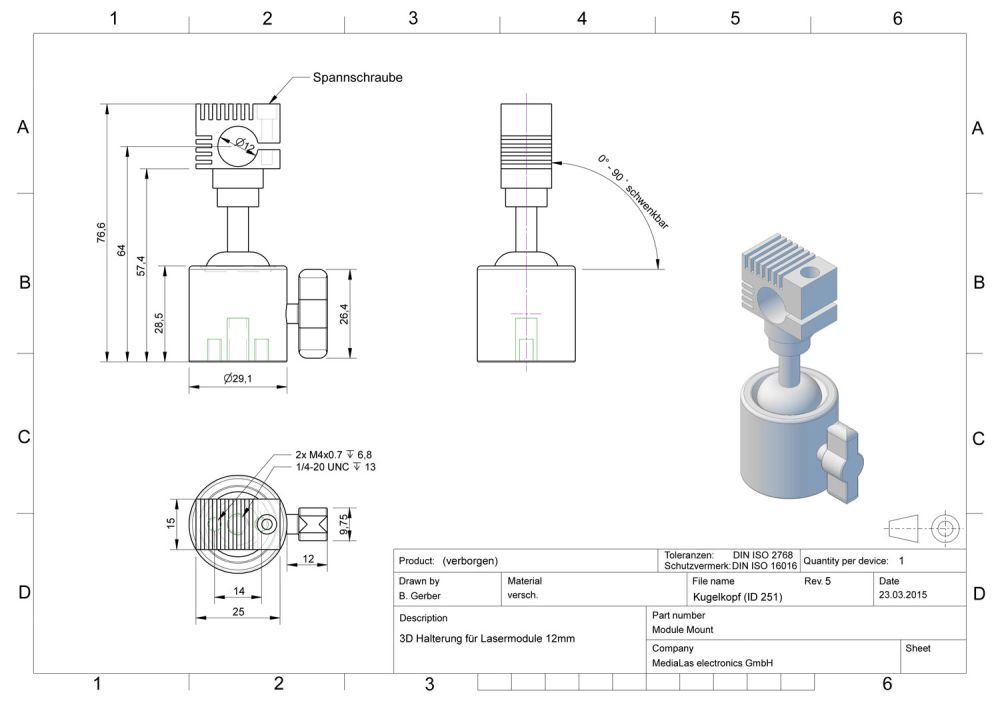

Technical Specifications
| Dimensions: | approx. 77 h x 29 d |
| Threads in the base: | 2x M4 + 1x 1/4" UNC20 |
| Laser height above ground: | 64 mm |
| Swivel range: | approx. 180° hemisphere + 360° |
| Material: | Aluminum, steel, stainless steel |
| Clamping for laser module: | 12 mm |
Notes
- Delivered WITHOUT laser module
- In high-vibration environments, secure the clamping screw with threadlocker
Options

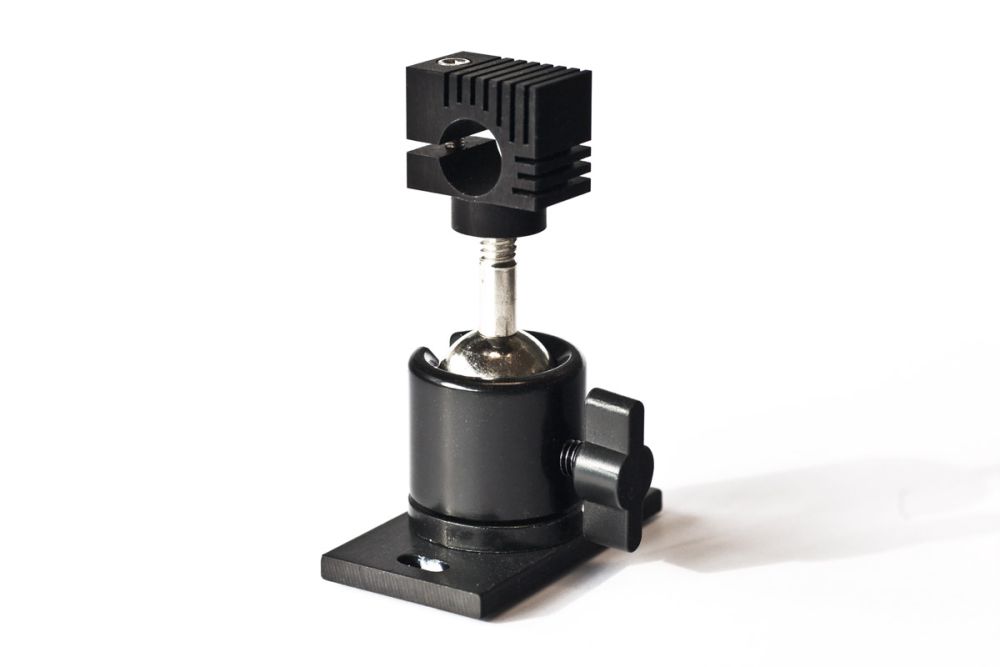

- Wall mounting plate for installation on surfaces, ceilings, or walls—screws onto the base (screws included), front mounting (see image)
