Laser Safety
Laser Safety
Laser safety is the foundation for every industrial laser application: Which laser class (1, 1M, 2, 2M, 3R, 3B, 4) applies to my device? Which protective measures are required? Which IP rating fits my environment? How is a laser classified according to the relevant standards?
Lasershop collects information, safety goggles, warning labels and design notes here. All industrial lasers from MediaLas are classified to applicable standards at our facility in Germany and shipped with full conformity documentation.
9 Products
Frequently asked questions about laser safety
Laser safety in red, green and blue: frequently asked questions
Answers about color selection for industrial applications in our laser safety category.
Are laser class / safety notices legally required in product texts?
Labelling on the device per EN 60825-1 (sticker with class, wavelength, power) is mandatory. Including the information in product texts or datasheets is not explicitly required by law, but in practice it is industry standard and sensible for liability reasons. For all our products we state the laser class and wavelength in the technical data. For high-power modules (Class 3B and above) we additionally include prominent notes on protective measures. Note: this is not legal advice. For binding questions on labelling duties in distribution please consult a lawyer specializing in product liability or the relevant trade association.
How does the blink reflex protect against Class 2 lasers?
The blink reflex is an involuntary eye reaction to bright light: the eyelid closes automatically within about 0.25 seconds. With Class 2 lasers (up to 1 mW in the visible range) this time is shorter than the maximum permissible exposure (MPE) for a damage threshold. In practice this means an accidental glance into the beam of a Class 2 laser is harmless because the eyelid blocks the beam in time. Important limitation: the reflex only works for visible light (400–700 nm) and not for prolonged deliberate staring. For UV or IR radiation no blink reflex exists – different protection rules apply.
What are the duties of the laser safety officer?
From Class 3R (in commercial use) a laser safety officer (LSO) is mandatory. Duties: 1. prepare a risk assessment for the specific laser application. 2. define protective measures (safety goggles, shielding, labelling, training). 3. train and instruct staff regularly. 4. maintain the safety documentation. 5. coordinate maintenance and inspection of laser safety equipment. The appointment must be documented in writing. Qualification is obtained via a two-day LSO seminar with an exam – we offer such seminars through our sister event (see „LSO Seminar“ in the shop).
Which labelling requirements apply to lasers?

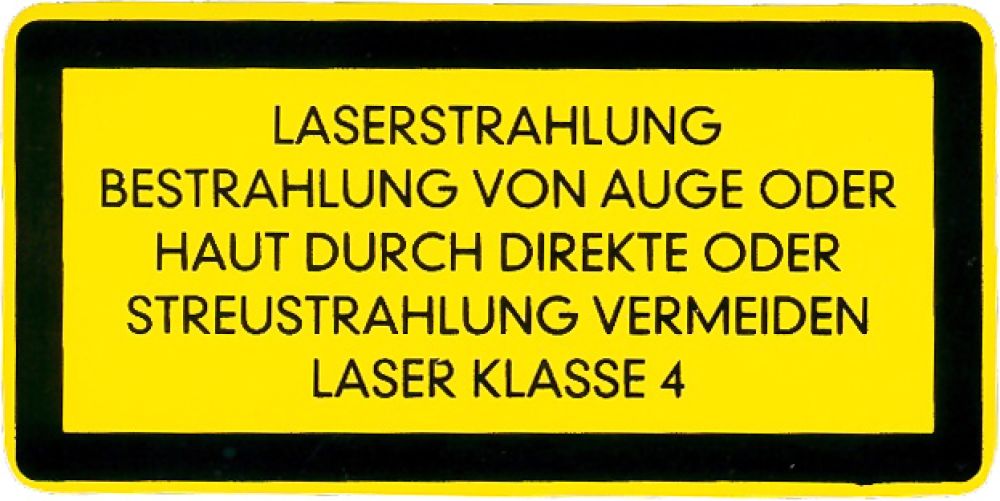

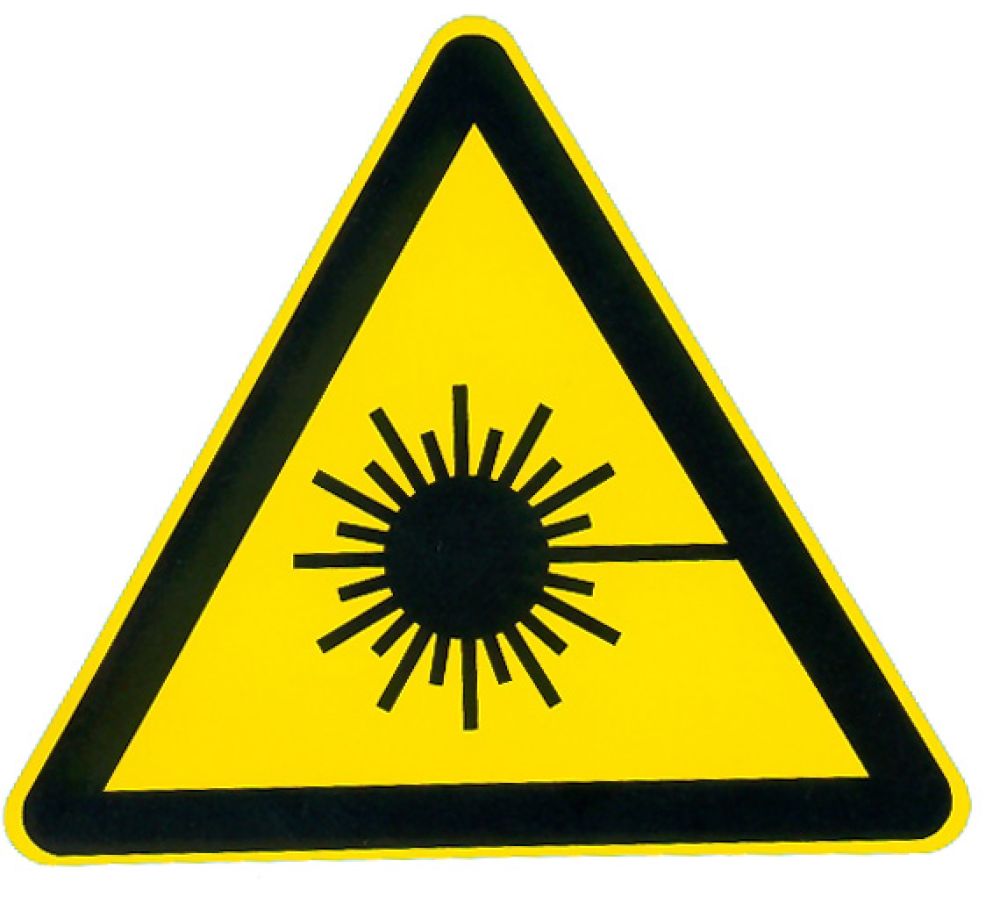

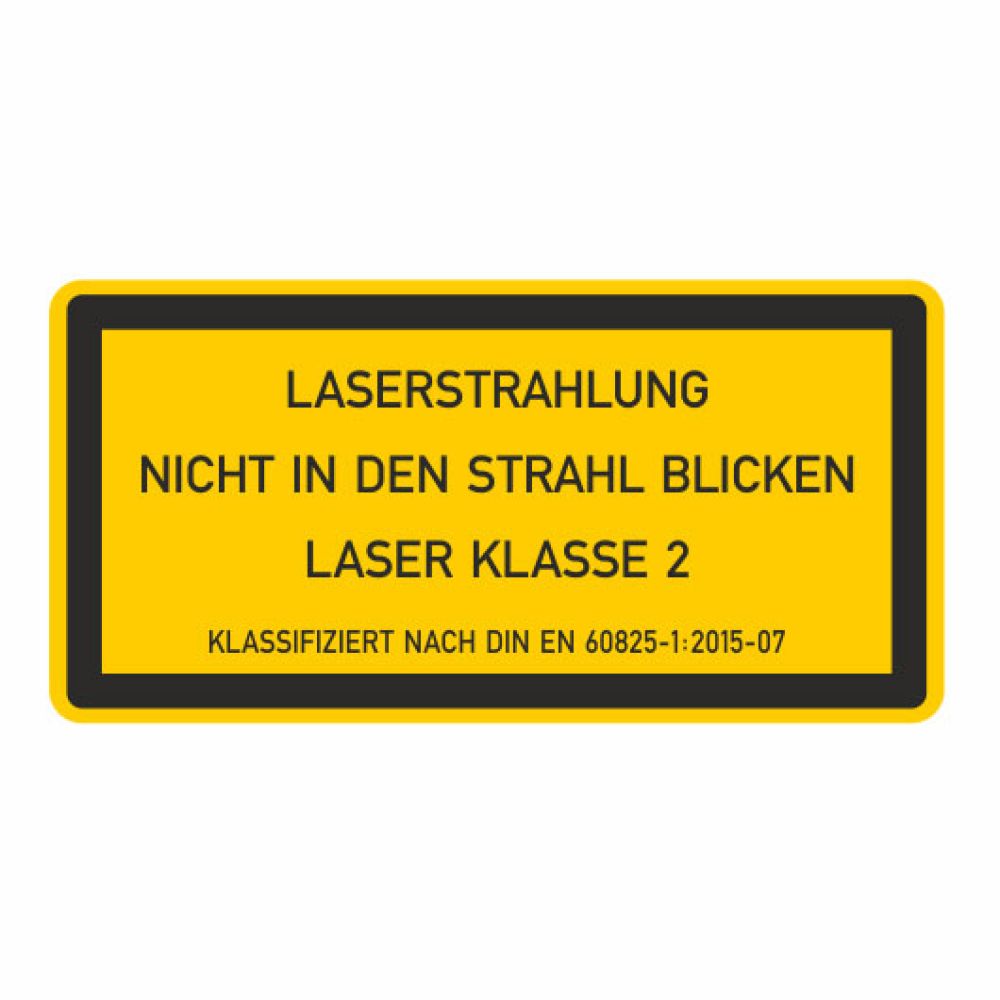

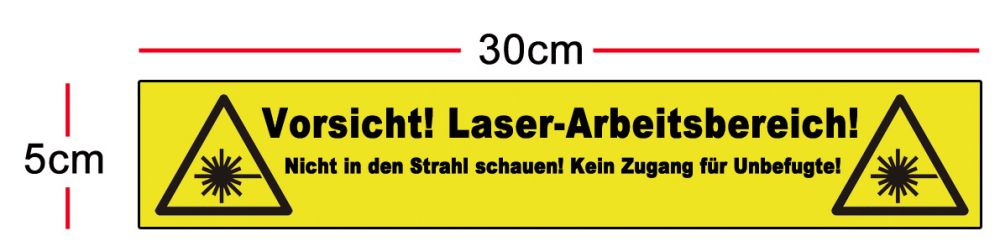

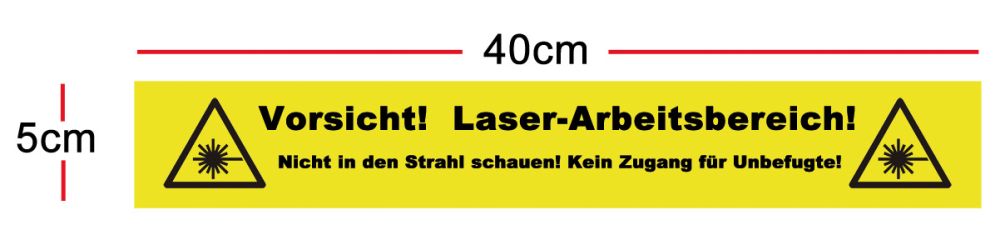

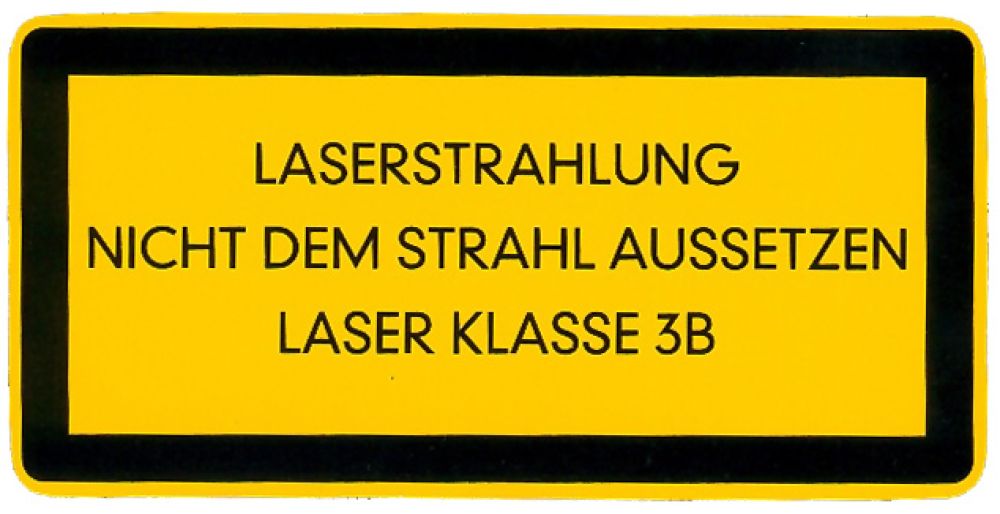

Each laser device must be permanently labelled per EN 60825-1 with the following information: laser class (e.g. „LASER CLASS 2“), wavelength in nm, maximum optical output in mW, standard caution statement (e.g. „Laser radiation – do not stare into beam“) and from Class 2 the laser warning symbol (yellow triangle with beam symbol). Class 3B and 4 additionally require: aperture marking at the beam exit, warning signs in the hazard area and a key switch where applicable. For laser systems built-in (e.g. machines with an integrated laser) the operator is responsible for labelling the complete installation.
When are laser safety goggles mandatory?
Mandatory from Class 3B: looking directly into the beam without safety goggles risks eye injury. The goggles must be wavelength-specific – goggles for 532 nm do not protect against 405 nm. Strongly recommended from Class 3R: although the blink reflex usually still provides sufficient protection at Class 3R, in a professional environment goggles are standard. Not required for classes 1, 1M, 2, 2M – except for 1M/2M when magnifiers or binoculars are used for observation. Important: goggles must match the wavelength AND the optical density (OD) must match the laser power. We are happy to advise.
What are „extended sources“ (TROS) and why do they matter?
„Extended sources“ is a term from TROS laser radiation (Technical Rule on Optical Radiation – the national German counterpart to EN 60825-1). Line lasers, cross-line lasers and DOE positioning lasers fall into this category because they spread their radiation across an area geometry – in contrast to „collimated sources“ (point lasers), which concentrate all power in a narrow beam. Consequence: at equal total power the irradiance per point is lower, and the extended source is classified into a lower laser class than the collimated one. Practical example: a 50 mW line laser can fall into Class 2 while a 50 mW point laser already reaches Class 3R.
What do laser classes 1, 2, 1M, 2M, 3R, 3B and 4 mean?
Class 1: completely safe even on direct viewing. Class 1M: eye-safe except when viewed through magnifiers or binoculars. Class 2: visible, up to 1 mW, protection via blink reflex (max. 0.25 s exposure). Class 2M: like Class 2, but not to be viewed through magnifiers or binoculars. Class 3R: up to 5 mW in the visible range, increased risk on direct viewing, safety goggles recommended. Class 3B: up to 500 mW, direct exposure dangerous, safety goggles mandatory, diffuse reflections usually harmless. Class 4: > 500 mW, dangerous even via diffuse reflection, highest safety measures, fire hazard. From Class 3R a laser safety officer is required.
What is EN 60825-1 and why does the standard matter?
EN 60825-1 is the relevant international standard on the safety of laser products. It defines the laser classes (1, 1M, 2, 2M, 3R, 3B, 4), the maximum permissible exposure (MPE) for eye and skin, the labelling requirements and the protective measures. The standard is legally binding in the EU and Germany for all commercially sold and operated lasers. Manufacturers must classify their devices to EN 60825-1 and label them accordingly. Operators must implement the safety measures matching the laser class – from Class 3R onwards a laser safety officer is mandatory in commercial use.
