LDD1x: Universal 1 A laser diode driver in a low-dropout circuit (up to 24 V diode voltage), modulation 0–50 kHz TTL or analog.

€69.02

Delivery time: In stock

Product number: LDD1x

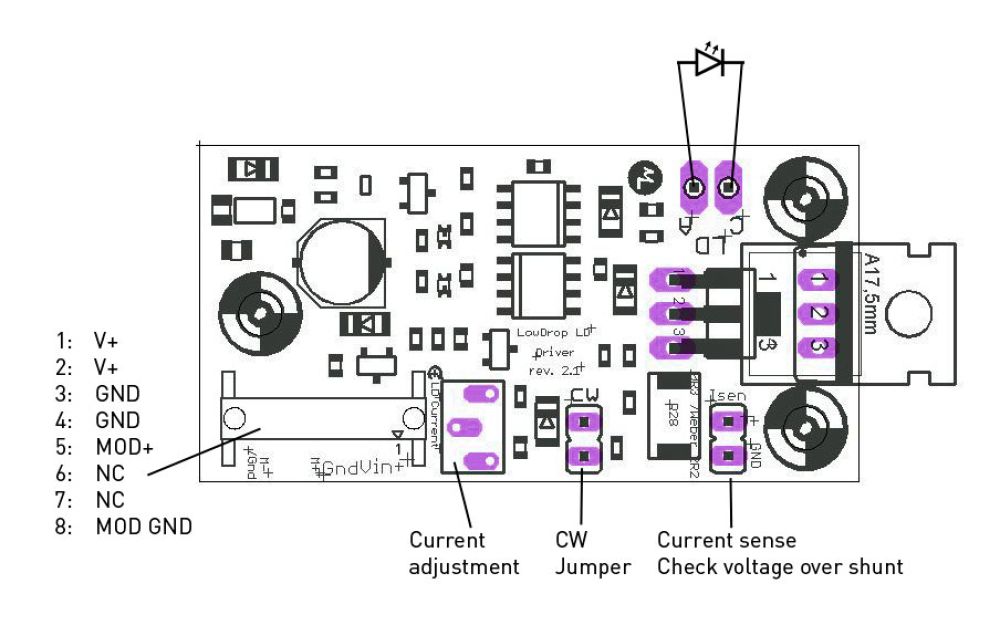

Laser diode driver 1 A, Miniature, LowDrop voltage

Universal Laser Diode Driver 1 A (LowDrop) – LDD1x: Mini SMD driver with a LowDrop circuit for minimal power loss – a blue laser diode can operate with as little as 5 VDC. Up to 1 A diode current, diode voltage up to approx. 24 V, modulation 0–50 kHz (TTL or analog).

LowDrop circuit – minimal losses, usable starting at 5 VDC
Max. 1 A diode current, diode voltage up to approx. 24 V
Modulation 0–50 kHz, TTL or analog

Technical Specifications

Maximum current:	1 A
Maximum diode voltage:	approx. 24 V
Maximum supply voltage:	approx. 25 V
Minimum voltage difference:	approx. 0.5–1 V
Modulation:	0–50 kHz
Modulation voltage:	0–5 V TTL or analog
Dimensions:	48 x 24 mm

Scope of delivery includes a matching connector with a 25 cm ribbon cable. Longer cables available upon request.
