Pan/Tilt mount for 12mm laser modules
Adjustable pan/tilt mount for 12-mm laser modules: Tilt range over 200°, rotation range 360°, anodized aluminum, clamping mechanism with heat dissipation.
Regular price:
€88.06
Product number:
PT-Mount-12
Description
Pan/Tilt mount for 12mm laser modules
Pan/Tilt Mount for 12-mm Laser Modules – PT-Mount-12: Sturdy, adjustable mount made of anodized aluminum with a well-engineered design for a wide tilt range of over 200° (Y-axis) and 360° pan range (X-axis). The pan axis is secured via a dowel pin in the base.
The laser module is clamped in place and can be moved or realigned at any time; the clamping mechanism also serves for heat dissipation. The base plate features both slotted holes for surface mounting and various threaded inserts for through-hole mounting.
Technical Specifications

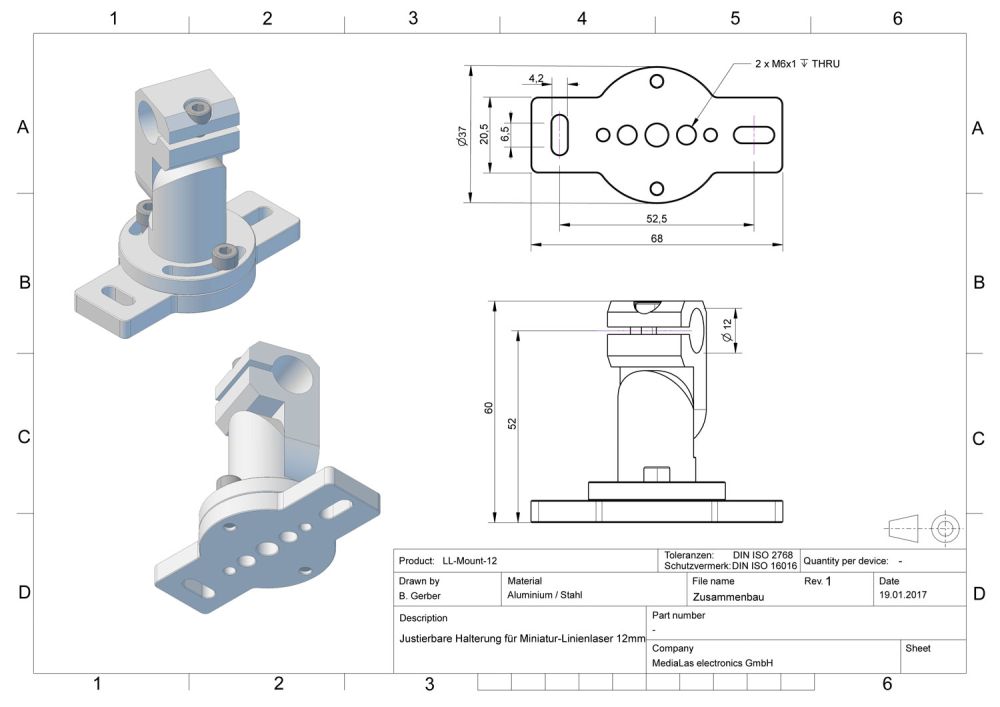

| Dimensions: | approx. 60 h x 37 w x 68 mm |
| Clamping hole: | 12 mm |
| Clamping hole height above the floor: | approx. 53 mm |
| Material: | Anodized aluminum. Stainless steel clamping screw |
| Mounting hole spacing: |
Slotted holes: approx. 53 mm , 2x M4 threads, approx. 30 mm , 2x M6 threads, approx. 17 mm |
| Tilt range: | > 200° |
| Rotation range: | Unlimited > 360° |
Notes
- Shipped without laser module
