Positioning laser module 10mW RED " circle"

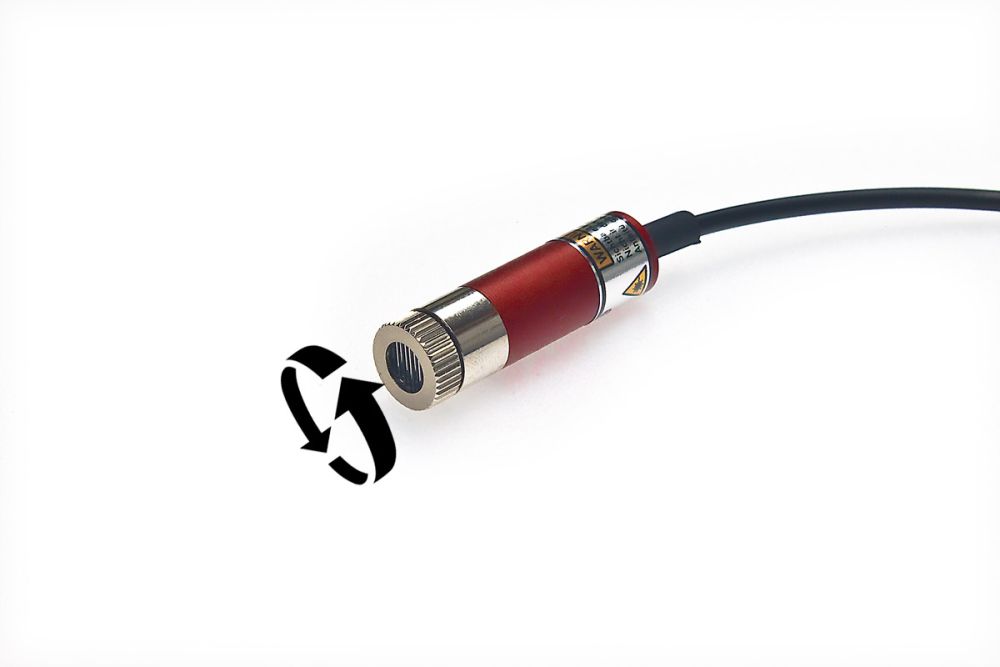

10 mW Red "Circle" Positioning Laser Module (650 nm) – PLM-10-650-Circle: Compact laser diode module with DOE digital optics that projects a red circle onto the work surface—for positioning, alignment, and operator guidance tasks. The focus is adjustable.

"Circle" projection pattern via DOE digital optics
Red pattern (650 nm) with 10 mW
Image size approx. 55 cm at 1 m @ 35°, approx. 8 cm at 1 m @ 6°

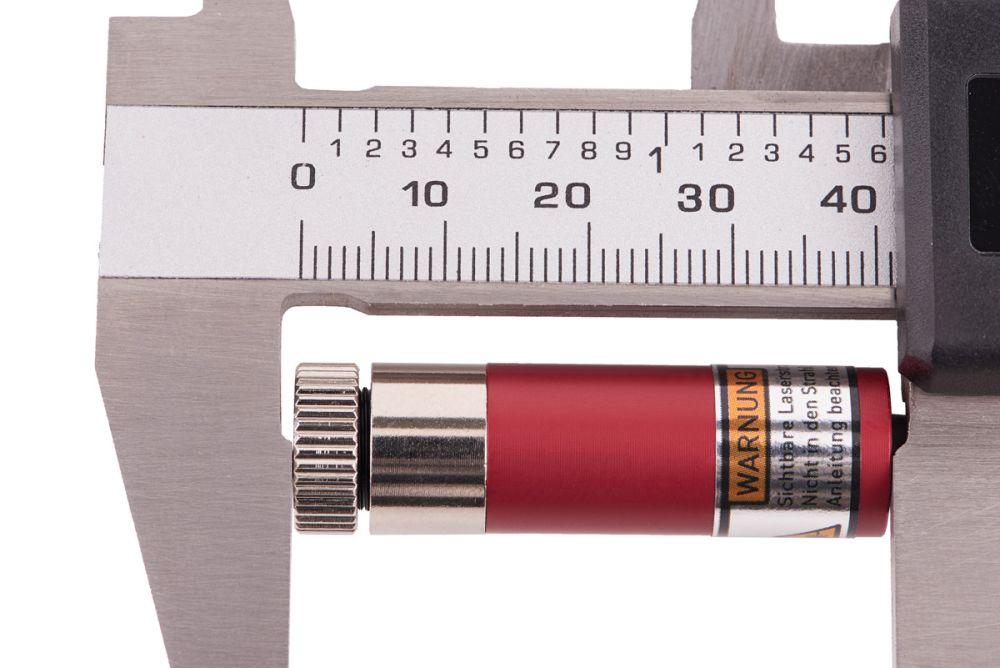

Compact 12-mm module for integration into devices and machines

Technical Specifications

Laser Power	10 mW
Wavelength/Color	650 nm RED
Spot Size	approx. 55 cm at 1 m @ 35°, approx. 8 cm at 1 m @ 6°
Focus range	Approx. 5 cm to approx. 200 cm, recommended up to max. 100 cm
Power Supply	3–5 VDC <100 mA, optional 12–25 VDC or 230 VAC
Isolation:	Housing conducts potential
Laser class after setup	Class 2M or 1M, depending on the installation type
Dimensions	12 x 35/42 mm
Temperature range	-15°C to +40°C
Service life	typ. > 25,000 h

Notes

Observe the laser class!
For more information on laser safety, click here.
For continuous operation, the module must be mounted in a heat sink.
Stabilized, peak-free power supply!

Options

Hollow-pin connector; direct operation via plug-in power supply is possible.
Various power supply types
Glass collimator, for stable operation under higher temperature fluctuations

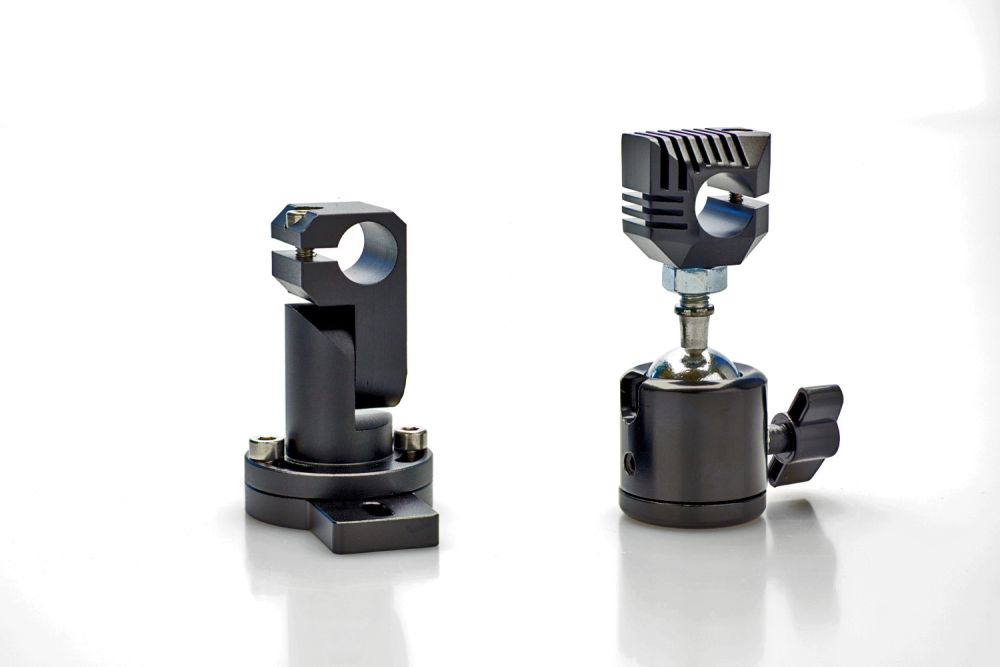

Fully adjustable mounts

Circle angle:	6° small circle, 35° large circle
Collimator:	Acrylic, Glass
Connection type:	12-25VDC, 12-25VDC with M8 connector, 12-25VDC with M12 connector, 110-230VAC, Barrel connector, Wires
